In the FSX world, FSXPilot mainly supports four flight simulator versions:


  • FSX
  • FSX Steam edition
  • Prepar3D


Each simulation needs it's own specific version of a file called "simconnect.dll" in FSXPilot's home directory.

Simconnect is necessary for a proper communication between FSXPilot and FSX or P3D.


To test that, we have the following


Method


start FSX, load an aircraft

start FSXPilot

press AP main button



Result

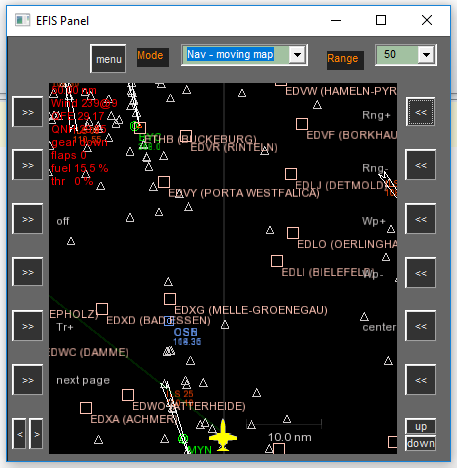

The normal result is an an audio signal and display of NAV targets on the EFIS like here:






CAVEAT


If you do not see those targets (black screen only) FSXPilot will probably not be able to communicate with FSX because of a wrong Simconnect version.


In this case, please replace the simconnect.dll file present in FSXPilot home directory with a different version.

In FSXPilot home directory, we have a sub folder named "Simconnect alternate versions". In here we have the RTM retail, the SP1 and the XPACK version of simconnect.dll.

Please replace the simconnect.dll in FSXPilot's main folder by a different copy from the "Simconnect alternate version" folder.


Normal FSX: use the default simconnect.dll

P3D: use the RTM retail or the SP1  version of simconnect.dll

FSX Steam: use the XPACK version of simconnect.dll
